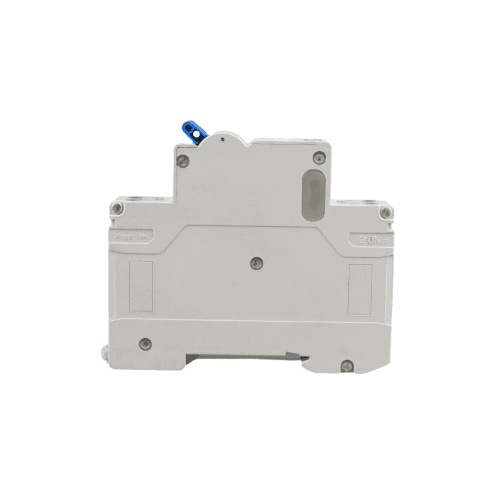

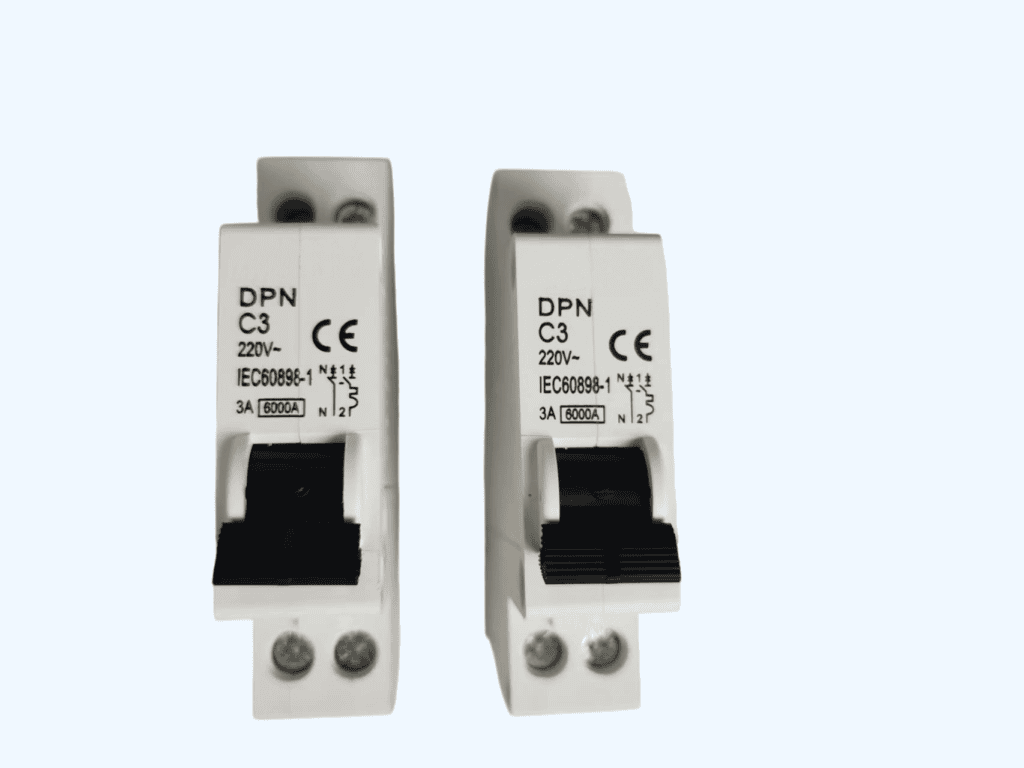

IDPN C3 Circuit Breakers NON-Differential MCB 3A
Products Name : IDPN Circuit Breakers NON-Differential MCB
Products type: IDPN C3
Rated Current :3A
Rated voltage (V): 230V
Pole number : 1 P+N
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description

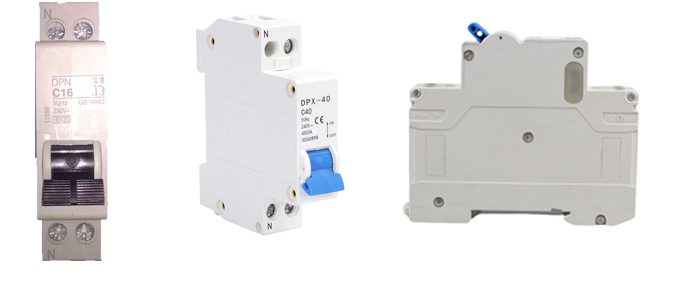

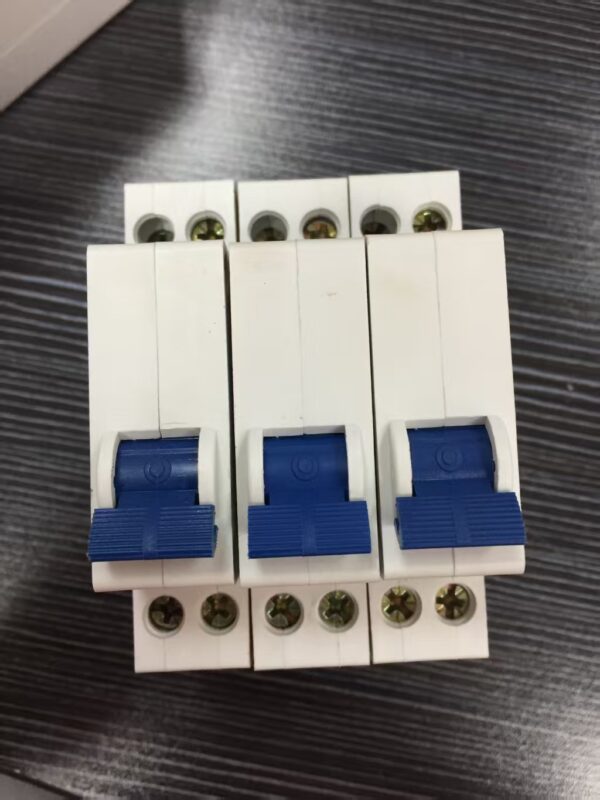

IDPN series MCB is an extensive range of DIN rail mounted, phase-neutral miniature circuit breakers . It provide absolute protection to circuits against short-circuit currents and overload currents in both residential and small building applications.
Suitable for isolation in compliance with IEC/EN 60898-1 and/or IEC/EN 60947-2.
Rated Operation voltage is 230V AC 50/60Hz between phase and neutral .
Available in 1P+N for circuits with In from 1 A to 40 A.
Breaking capacity at 4500 A, 6000 A
Specifications
| N° | Designation | Characteristics |
| 1 | Voltage measurement | 230V |
| 2 | Calibration | 3A 6A 10A 16A 20A 25A 32A 40A |
| 3 | Frequency | 50/60 Hz |
| 4 | Poles description | 1P + N |
| 5 | Number of protected poles | 1 |
| 6 | Neutral position | Left |
| 7 | Differential sensibility | NON – Differential |
| 8 | Network type | AC |
| 9 | Trip unit technology | Thermal-magnetic |
| 10 | Curve code | B , C , D |
| 11 | Protection factor | IP20 |
| 12 | Mechanical stamina | 4000 laborers(operations) according 2000 laborers(operations) except tension |
| 13 | Installation methods | Rail DIN |
| 14 | Nominal section of the cables of connecting | 14 mm for up or down connection cables
|
| 15 | Temperature of functioning | -25 to 70°C |
