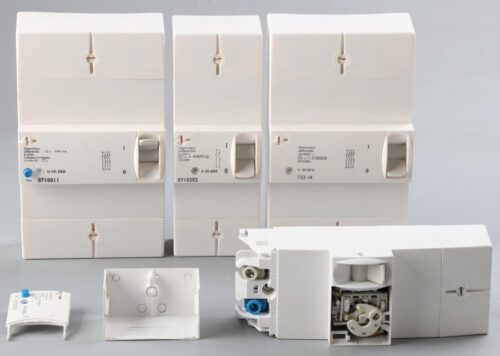

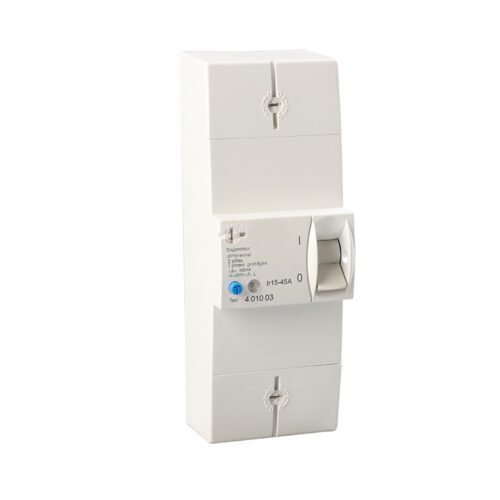

Electrical characteristics

Rated current(can be adjusted by user):

5A/10A/15A

10A/15A/20A/25A/30A

15A/30A/45A

30A/40A/50A/60A

20A/30A/40A/50A/60A

Differential sensitivity (mA) : 300 mA, 500 mA

protected pole: 1pole for Bipolar; 3 poles for Tripolar

voltage drop: < 0.3 V

Frequency:50Hz

Protection against mechanical impacts:IK07

Protection index:Degree of protection IP 40

tripping curve: B Curve / C Curve/ D Curve

Breaking capacity at cosθ=0.7 ;

Terminal identification:Poles unprotected left, blue cap, marked N and the poles protected right

ON/OFF control by push-button;test button for the differential function

Terminal identification:Poles unprotected left, blue cap, marked N and the poles protected right

Fixation:fixing to wood or plastic panel 2 screws 4mm diameter

Sectional area of​the connecting cables :16 to 25 mm2 for aluminum cable6 mm² copper terminal downstream

15.operating temperature: – 5 ° C to + 70 ° C

16.Standard: NFC61450
