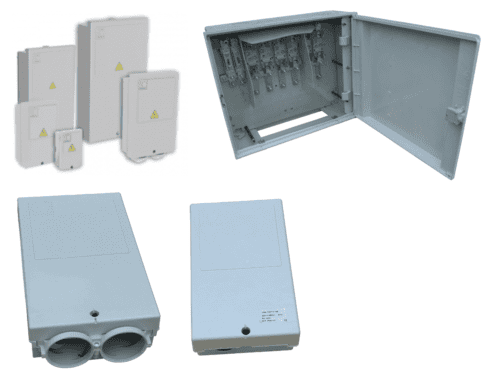

Multi-circuit Fuses Junction Box - Fuse Enclosure

Multi-circuit Fuses Junction Box

Place of Origin:Zhejiang, China (Mainland)

Model type:JFFB05

Fuse Size :10×38

Poles Number: 6 ways

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Description

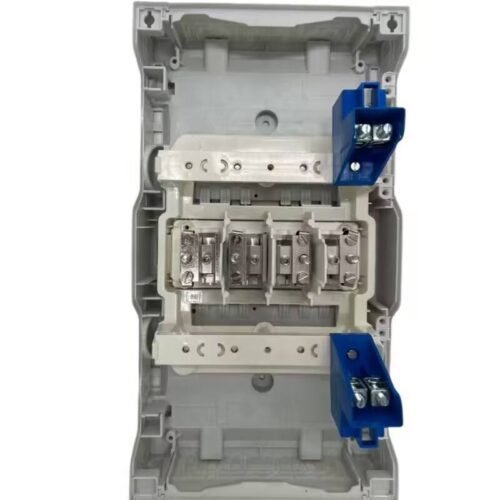

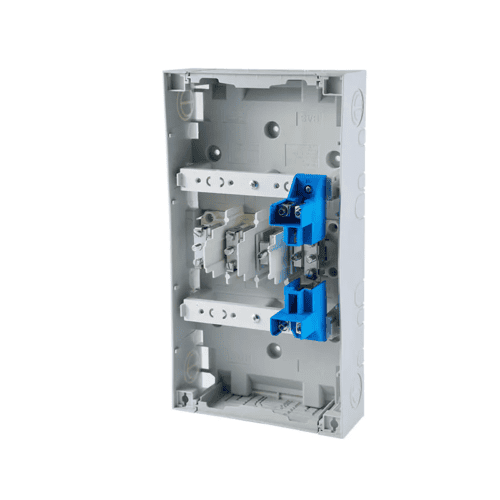

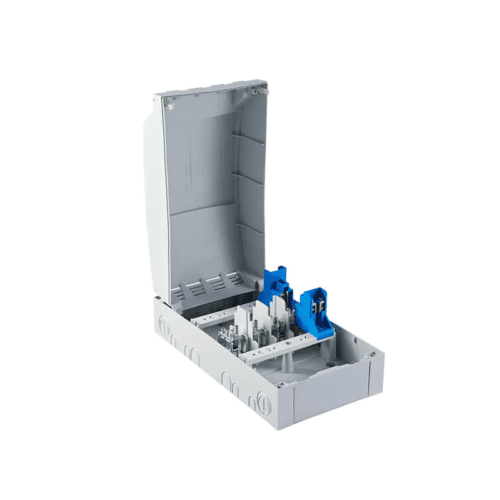

The junction box is designed for multi-circuit fuses . Each junction box has a maximum rated power of 45 kVA to meet diverse wiring and protection requirements. The unit features detachable main terminals, with optional configuration of 6 X Single‑phase fuse bases or double Three-phase fuse bases.

Specifications

Reliable Material & Safety Protection

Material :The enclosure is made of high‑strength PP plastic

IK10 impact resistance.

IP 44

Triangular lock for controlled access and locking operation.

Equipped with detachable main terminals, the unit enables seamless connection with flat conductors, copper wires of 25‑95 mm² and busbars of 24‑96 mm², supporting a wide range of wiring specifications.
