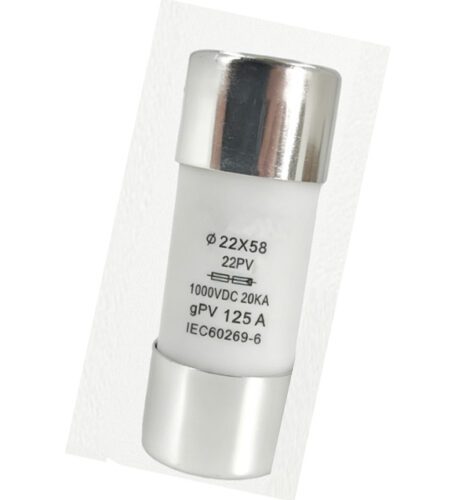

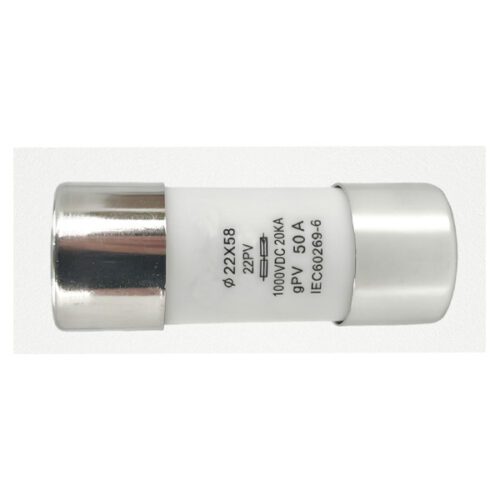

Solar Fuse Link 22×58 mm 1000V DC - Fuse Links

Solar Fuse Link 22×58 mm 1000V DC

Place of Origin:Zhejiang, China (Mainland)

Model type:JF22PV

Fuse Size :22×58

rated current: 40A,50A,63A,125A

rated voltage:1000V DC

accord with standards:CE

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Description

JF22PV is the type of 22×58 mm fuse links.They are specifically designed for photovoltaic systems, supporting up to 1000V DC and ensuring reliable protection for solar panel arrays. These re-settable fuses are factory-customized to meet various installation requirements, maintaining system safety by efficiently interrupting overcurrent situations.

Specifications

Size： 22 x 58 mm
Rated Voltage： 1000V DC
Application Photovoltaic (Solar Panel) systems
Customization Factory-customized solutions available
Function Re-settable, overcurrent protection

Item	DC Fuse with fuse holder
Model Number	JF22PV
Pole	1P
Rated Current(In)	40A,50A,63A,125A
Biggest Block Ability(KA)	20
The Most High Power Consumption(W)	3.5
Connection(mm2)	2 .5 -1 0
Working Temperature(℃ )	-30~+70
Resistance And Damp Hot	Class 2
Altitude(m)	≤ 2000
Relative Humidity	≤ 95%
Protection Class/Degree	IP20
Pollution	3
Installation Class/Type	Class III/DIN rail
Fuse Size	22×58
