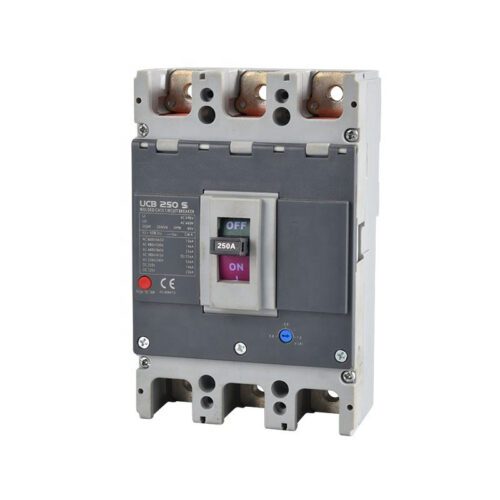

JFM6 Series molded case circuit breaker (UCB series)
Place of Origin: Zhejiang,China .
Products Name : Molded Case Circuit Breakers (MCCB)
Products type: JFM6 Molded Case Circuit Breaker
Rated Current : 100A,125A,150A,175A,200A,225A,250A
Rated voltage (V): 690V or below
Pole number : 3 pole , 4 pole
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Molded Case Circuit Breakers (MCCB) is an electrical protection device to protect electrical circuits from damage by overcurrent. Prevents overload, short circuit and switching of circuits.
Molded Case Circuit Breakers are designed for higher current ratings and can provide overcurrent and short circuit protection.They are used to protect low-voltage electrical circuits and equipment .They are named “molded case” because their outer housing is typically made from a molded insulating material.
Specifications
| Type | Poles | Rated Current In (A) | Ultimate Short Circuit Breaking Capacity(kA), Icu | Uimp(kV) Rated Impulse Withstand Voltage | |||||||
| Ue(DC) | Ue(AC 50/60Hz) | Ui(V) | |||||||||
| 125V | 250V | 220/240V | 380/415V | 440/460V | 480/500V | 600/660V | |||||
| UCB 100R | 3P | 100,125,150,175,200,225,250 | 20 | 14 | 50 | 30/25 | 25 | 14 | 10 | 690 | 6 |
| UCB 100R | 4P | 100,125,150,175,200,225,250 | 20 | 14 | 50 | 30/25 | 25 | 14 | 10 | 690 | 6 |
| UCB 250H | 3P | 100,125,150,175,200,225,250 | 40 | 25 | 85 | 42 | 42 | 30 | 20 | 690 | 6 |
| UCB 250H | 4P | 100,125,150,175,200,225,250 | 40 | 25 | 85 | 42 | 42 | 30 | 20 | 690 | 6 |
| Type | Poles | Rated Current In (A) | Ultimate Short Circuit Breaking Capacity(kA), Icu | Uimp(kV) Rated Impulse Withstand Voltage | |||||
| Ue(AC 50/60Hz) | Ui(V) | ||||||||
| 220/240V | 380/415V | 440/460V | 480/500V | 600/660V | |||||
| UAB 100C | 2P | 63,100,160,200,225,250,320,400,630 | 10 | 7.5/5 | 5 | 2.5 | 2.5 | 690 | 6 |
| UAB 100C | 3P | 63,100,160,200,225,250,320,400,630 | 10 | 7.5/5 | 5 | 2.5 | 2.5 | 690 | 6 |
