DIN Rail set Aerosol Automatic Fire Extinguisher Fire Protection breaker for distribution box
Place of Origin:Zhejiang, China (Mainland)
Model type:JFAAF-01
Size :76x65x18 (mm)
Operating temperature range:-50℃~ 90℃
Fir extinguishing density: 100g/m³
Surface temperature of the shell:≤200℃
Oxidant and its content: Sr(NO3)2 60%/KNO3,20%
Thermal Spacing: 0.3m≤75℃ / 0.12m≤200℃ / 0.05m≤400℃
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
No power required – thermally activated, it responds instantly to early-stage fires, suppressing flames quickly with zero residue and non-conductive properties, keeping your sensitive equipment safe.
- Activation method: Thermal, no external power
- Activation temperature: 170°C
- Activation response: Activated within 15s after reaching temperature
- Aerosol generation duration: ≤6s

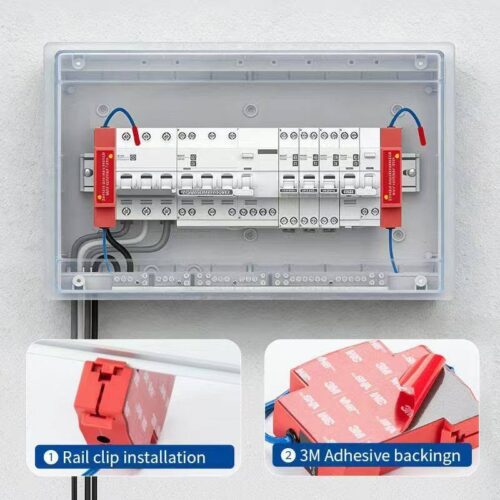

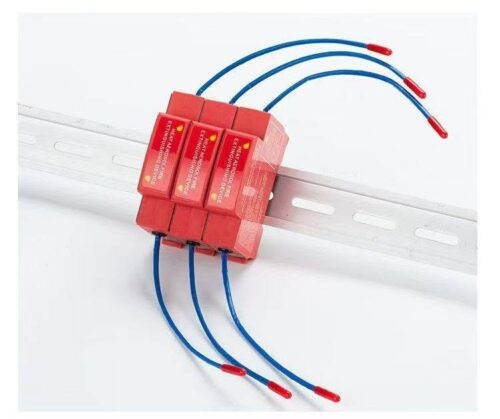

- Mounting: 35mm DIN-rail or adhesive side-mount
- Thermal probes: 2 probes (top and bottom)
- Probe cable length: Standard: 10cm per probe; Customization: 10-50cm per probe
- Protected volume: Up to 0.1m³ (typical, application-dependent)
- IP Level: IP20
- Compact size (76×65×18mm) with Din Rail install.
- 10 years warranty period
Ideal for telecommute base stations, energy storage stations, wind power equipment, and more.
