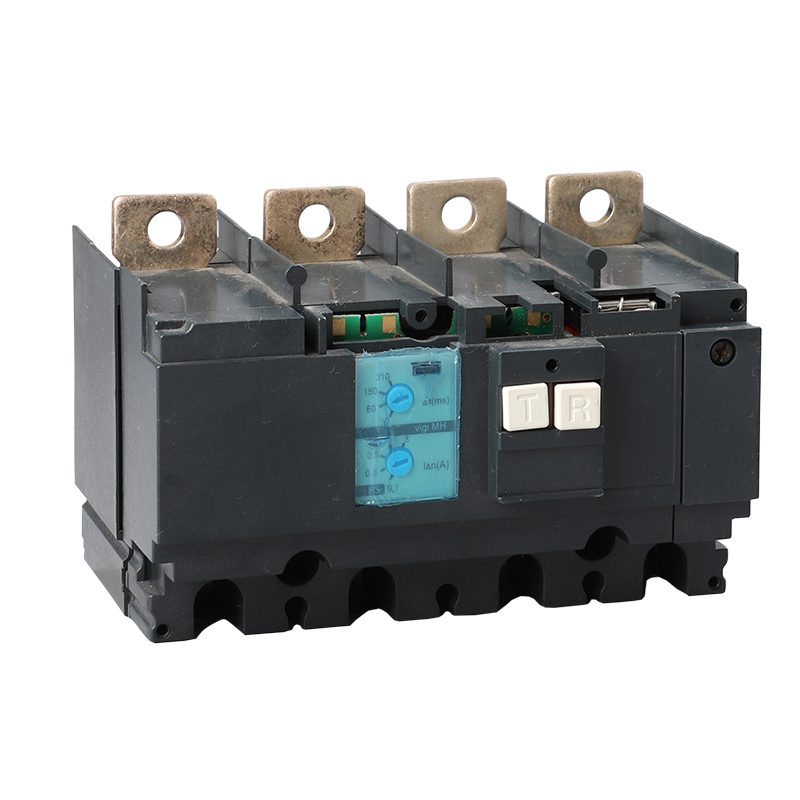

JFM2LE Molded Case Circuit Breakers (MCCB)
Products Name : Molded Case Circuit Breakers (MCCB)
Products type: JFM2LE Series molded case circuit breakerRated Current :63A,80A,100A，125A，160A，180A，200A，225A，250A,315A,350A,400A,500A,630A
Working Voltage:
Sensitivity I△n(mA),Adjustable range 30mA;300mA;1000mA;3000mA;10A
Tips: We can provide breakers’ alarm without release by request.
Available Frame: JFM2LE-100,160,250,400,630
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Specifications
Description
Molded Case Circuit Breakers (MCCB) is an electrical protection device to protect electrical circuits from damage by overcurrent. Prevents overload, short circuit and switching of circuits.
Molded Case Circuit Breakers are designed for higher current ratings and can provide overcurrent and short circuit protection.They are used to protect low-voltage electrical circuits and equipment .They are named “molded case” because their outer housing is typically made from a molded insulating material.
The Molded Case Circuit Breakers are intended for indoor installation or for installation in covered outdoor distribution panel.
JFM2LE Series molded case circuit breaker is commonly used to protect low-voltage electrical circuits and equipment. The rated insulating voltage is 750V, suitable for AC 50/60Hz,rated working voltage 690V or below, rated working current is 63A to 630A of circuit and used in distributing electric energy.

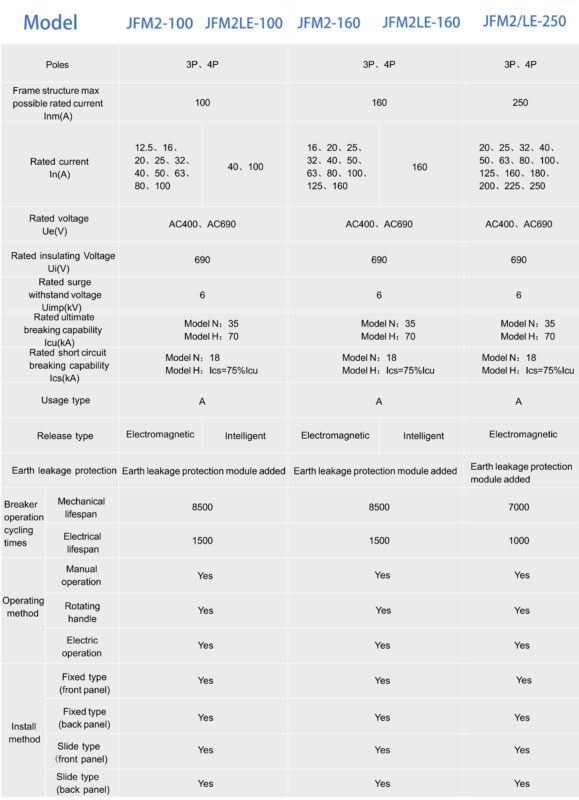

Specifications
Working Voltage:
Sensitivity I△n(mA),Adjustable range 30mA;300mA;1000mA;3000mA;10A
Tips: We can provide breakers’ alarm without release by request.
Available Frame: JFM2LE-100,160,250,400,630
