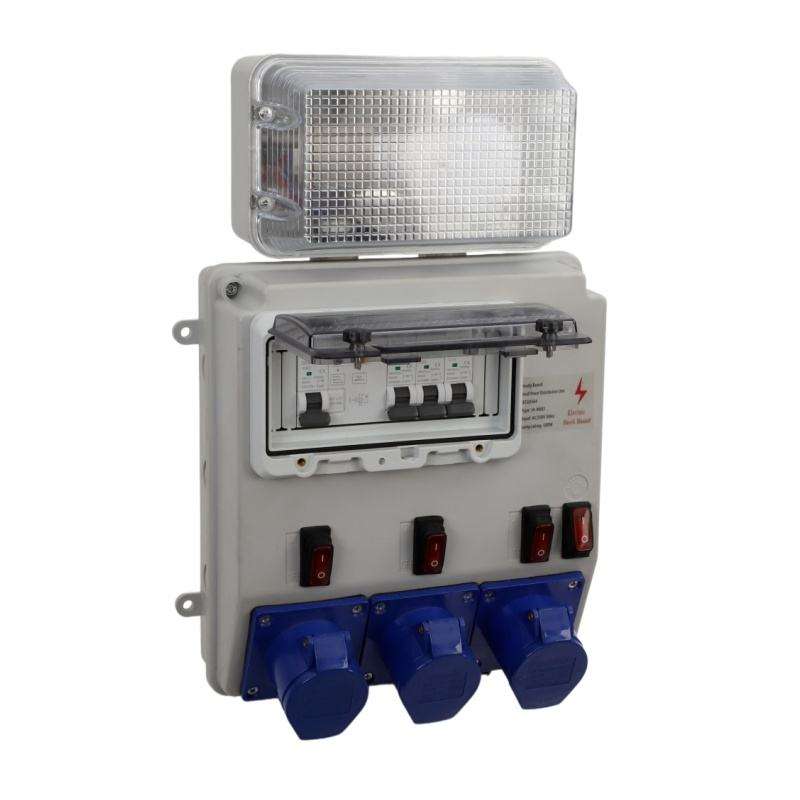

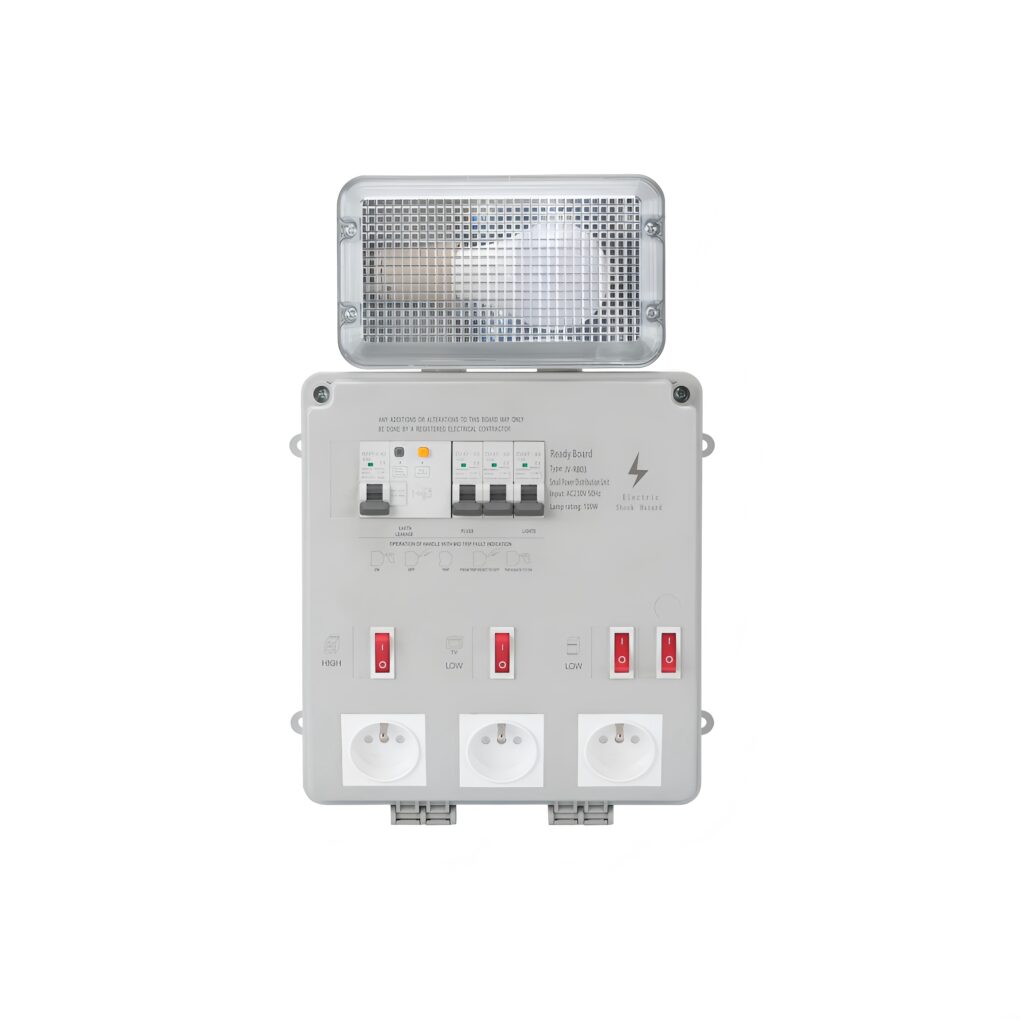

JF RB-1 ready board box Distribution Board with Switch Socket
Products Name :JF RB-1 ready board box
Products type: JF RB-1
Power input : AC 230V 240V 50/60Hz
Socket output :Maxirmum16A
Material of Ready Board Material : ABS

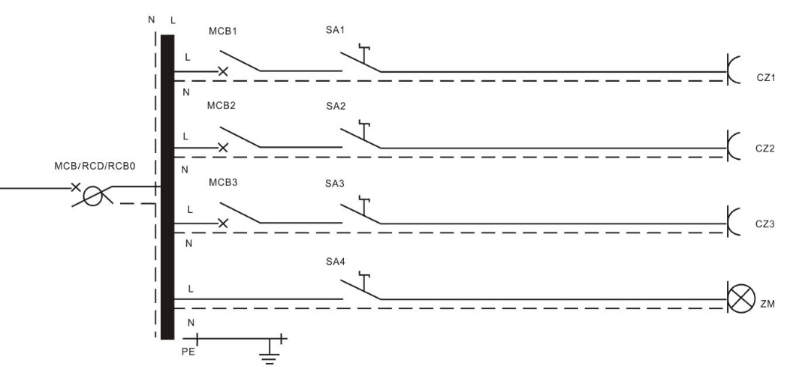

Constitute: one lighting lamp with three sockets
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
JF RB-1 ready board box is portable safe and easy to use pre-wired low voltage ready board with three sockets , one lighting lamp .Four mounting lugs suitable for wall installation and additional knockout for future use .
It is use for residential (small holding , extensions , garages , outbuildings),commercial and industrial purposes ,MCB and RCBO are at optional .
Specifications
| Performance technical | Characters |
| Power input | AC 230V 240V 50/60Hz |
| Socket output | Maxirmum16A |
| Residual current circuit breaker (RCBO) | 5-80A as per requirement |
| Minimum circuit breaker (MCB) | 5-80A as per requirement |
| Material of Ready Board Material | ABS |
| Fixation | Wall mounting with four screws |
| Protection index | Socket IP34,Box IP54,Lamp chamber Ip67 |
| Lamp | Replaceable 100W Max |
