Fuse Holder 22×58
Products Name :Fuse Holder 22×58
Products type: Connection box for 22×58 fuse
Pole number : 2 P ,4 P
Material : Self-extinguishing synthetic (PA6) .
sealed cover
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description

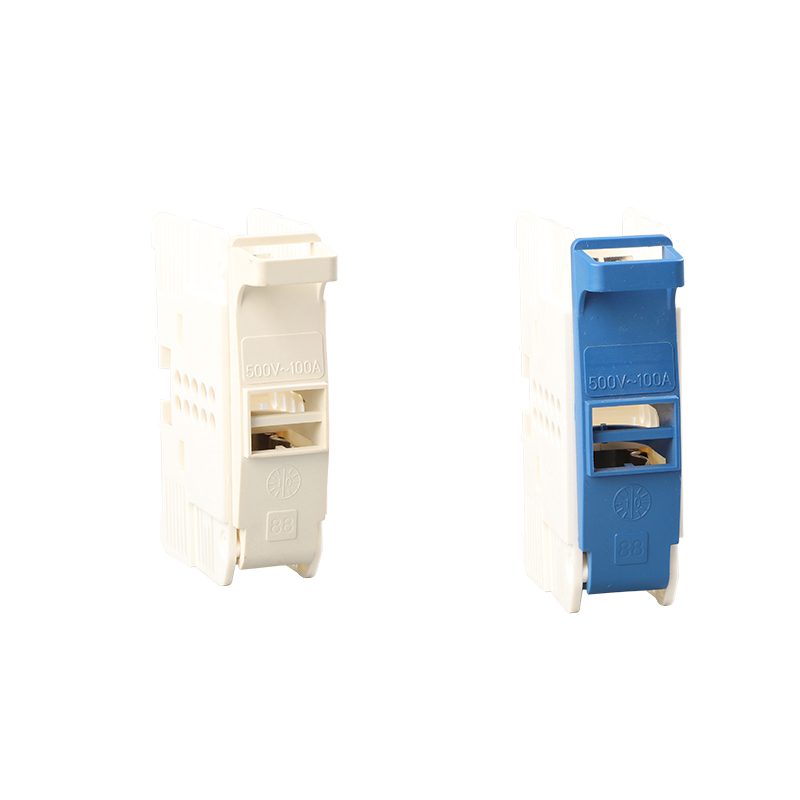

Fuse Holder 22×58
A base insulating self-extinguishing material(PA); The arrival and departure are equipped with cable clamp 35 mm² accepting bi-metal wires or aluminum copper. Equipped with a lever insulating self-extinguishing material (PA66). Equipped with a fuse holder insulating Secured by a M5 stainless steel screw.
self-extinguishing material (PA6) for 2 * 22×58 size or 4 * 22×58 size . Breaking and counting protection of low voltage protection hook . upstream or downstream of a power meter. for receiving cartridges H .P. C.
Cylindrical 22×58 mm caliber 30-125 A.
The set is 2X or 4X.

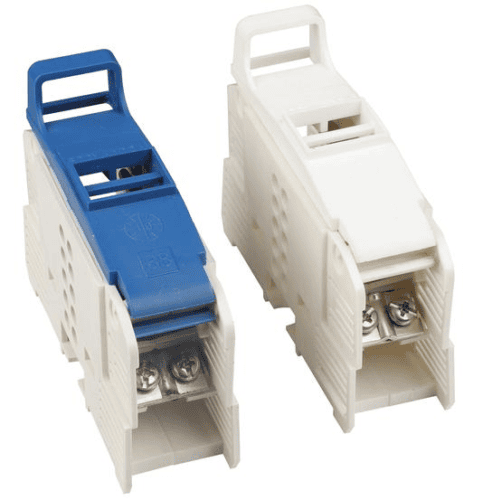

2X :One is white and one is blue ,
4X :Three is white and one is blue ;
Poles not protected to the blue , the poles protected to the white.
