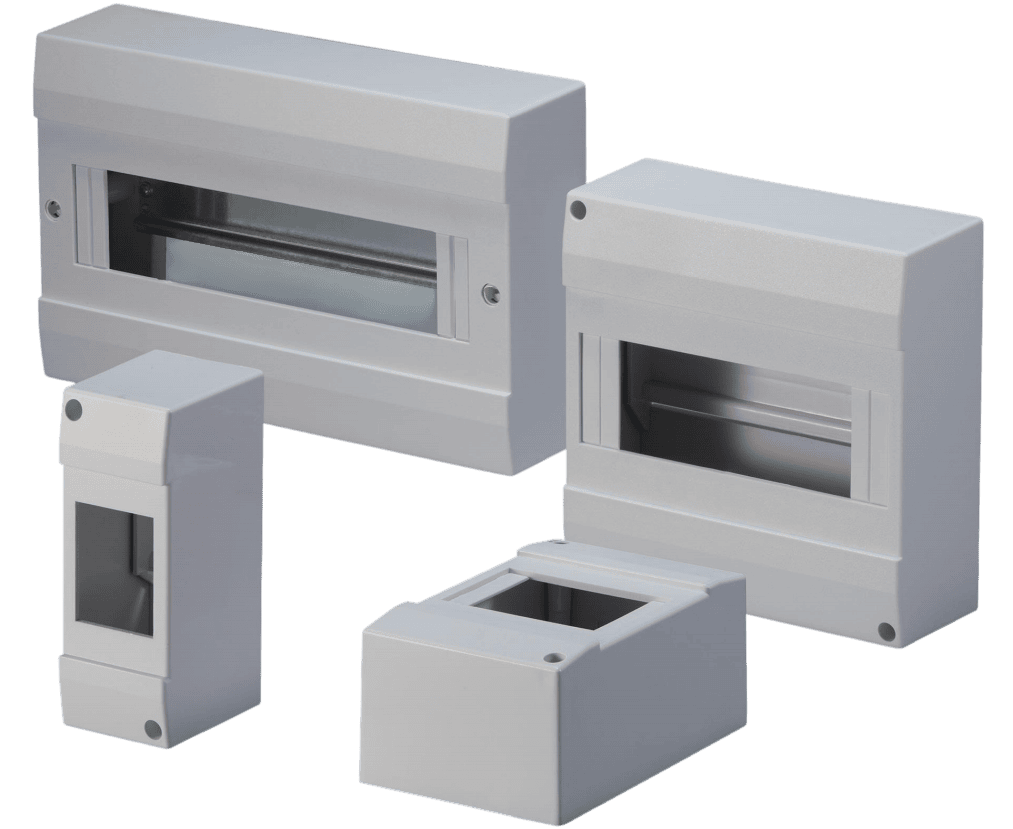

B5 Distribution BOX for DPN MCB
Products Name : B5 Distribution BOX ，enclosure for IDPN MCB
Products type: B5 Distribution BOX
Pole number : 1 P ,2 P ,4 P ,6 P, 8 P ,12 P ,18 P
Protection level : IP30
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
B5 distribution box is suitable for indoor applications such as dust-proof and anti-corrosion,for IDPN series MCB protector .
The standard is :EN 60670-24
Specifications
| N° | Designation | Characteristics |
| 1 | Type | Seal-able cover |

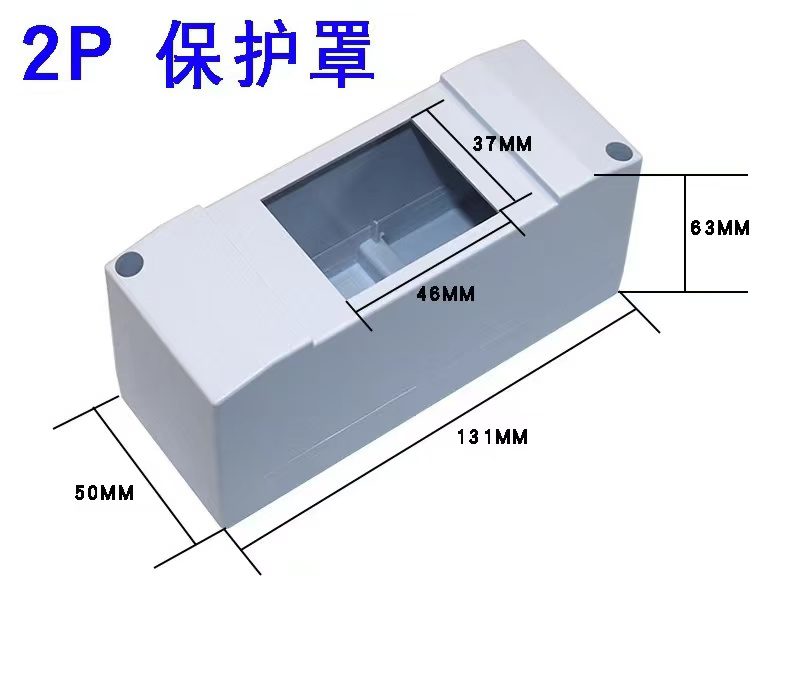

| 2 | Size | 51*131*60 (mm) |
| 3 | Material | Materials body frame plastic. |
| 4 | Protection factor | IP protection index greater than or equal to 30. |
| 5 | Connection | 1 symmetrical rail allowing the passage of the wires |
| 6 | Protection class | class II |
