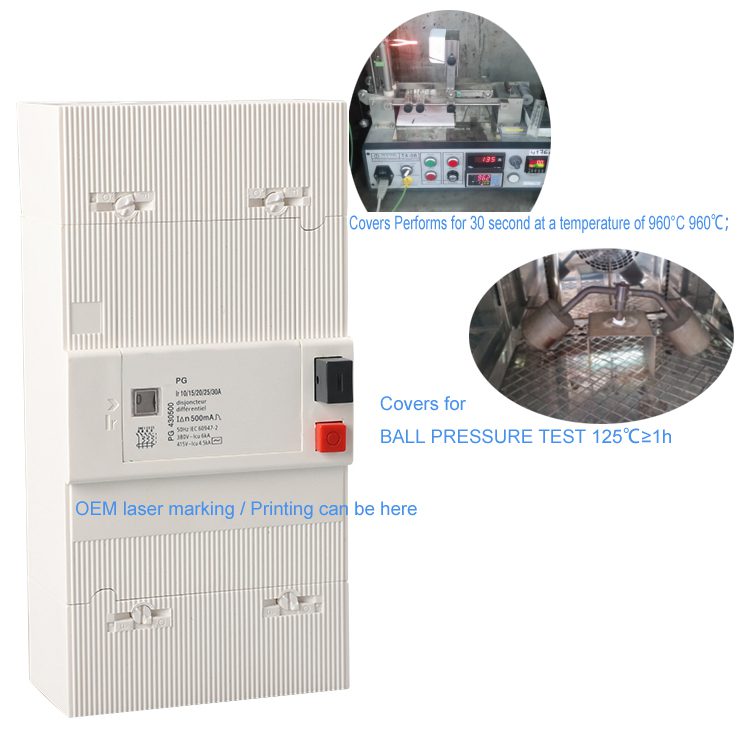

Compact low voltage branch 4 Pole 30-60A AC Circuit Breaker with Leakage Overload and Short Circuit Protection for 380-440V Systems-
Place of Origin:Zhejiang, China (Mainland)
Model type:
PG430000;PG430300;PG430500;
PG445000;PG445300;PG445500;
PG460000;PG460300;PG460500
Poles Number:4
Protected Poles: 3
rated current: 10-30A; 15-45A ; 30-60A OR 20-60A
rated voltage:380V/415V/440V AC
leakage operating: 0mA/300mA/500mA
accord with standards:NFC61450 NFC62411
protection against overload, short circuit and against electric shock for the other overload settings.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
The Differential circuit breaker / Subscriber circuit breaker will be of the overcurrent protection with fixed setting for the disconnection.The rated current of PG Circuit Breaker will be adjustable from 5A to 60A,and the user can set up specified current to protection against overload, short circuit and against electric shock for the other overload settings.
The PG Differential subscriber circuit breaker incorporates a double protection against: overcurrent by means of bi-metal .
Electrical characteristics
- Rated current(can be adjusted by user):
10A/15A/20A/25A/30A
15A/30A/45A
30A/40A/50A/60A
20A/30A/40A/50A/60A
- Differential sensitivity (mA) : 300 mA, 500 mA
- protected pole: 1pole for Bipolar; 3 poles for Tripolar
- voltage drop: < 0.3 V
- Frequency:50Hz
- Protection against mechanical impacts:IK07
- Protection index:Degree of protection IP 40
- tripping curve: B Curve / C Curve/ D Curve
- Breaking capacity at cosθ=0.7 ;
- Terminal identification:Poles unprotected left, blue cap, marked N and the poles protected right
- ON/OFF control by push-button;test button for the differential function
- Terminal identification:Poles unprotected left, blue cap, marked N and the poles protected right
- Fixation:fixing to wood or plastic panel 2 screws 4mm diameter
- Sectional area ofthe connecting cables :16 to 25 mm2 for aluminum cable6 mm² copper terminal downstream
- operating temperature: – 5 ° C to + 70 ° C
- Standard: NFC61450 NFC62411Electrical Specifications
Ref. N° Pole protected pole Rated Voltage Rated current (A) Ratings, In (A) Sensitivity, I△n Breaking capacity Storage temperature PG215000 2
4 220V/230V/ 240V/ 250V 15 5/10/15 A / 8000 A -20 °C to + 85 °C PG215300 5/10/15 A 300 mA PG215500 5/10/15 A 500 mA PG230000 30 10/15/20/25/30 A / PG230300 10/15/20/25/30 A 300 mA PG230500 10/15/20/25/30 A 500 mA PG245000 45 10/30/45 A / PG245300 10/30/45 A 300 mA PG245500 10/30/45 A 500 mA PG260000 60 10/15/20/25/30 A / PG260300 10/15/20/25/30 A 300 mA PG260500 10/15/20/25/30 A 500 mA PG430000 4
3 380V/400V/ 415V/ 440 V 30 10/15/20/25/30 A / 4500 A PG430300 10-15-20-25-30 A 300 mA PG430500 10-15-20-25-30 A 500 mA PG460000 60 30/40/50/60 A / PG460300 30/40/50/60 A 300 mA PG460500 30/40/50/60 A 500 mA
