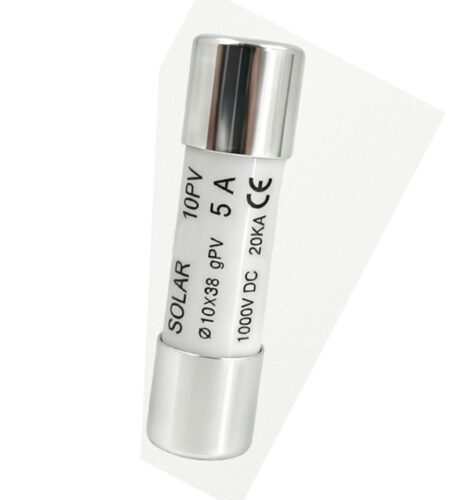

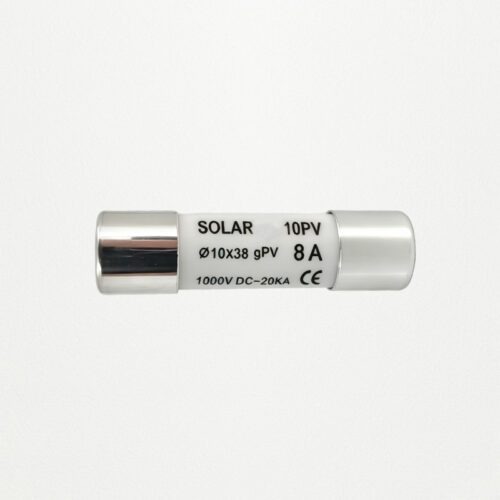

DC Fuse Link for for Solar system 10×38 mm - Fuse Links

DC Fuse Link for for Solar system 10×38 mm

Place of Origin:Zhejiang, China (Mainland)

Model type:JF10PV

Fuse Size :10×38

rated current: 1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A

rated voltage:1000V DC

accord with standards:CE

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Description

JF10PV is 10X38 fuse links are specifically designed for photovoltaic systems, supporting up to 1000V DC and ensuring reliable protection for solar panel arrays. These re-settable fuses are factory-customized to meet various installation requirements, maintaining system safety by efficiently interrupting overcurrent situations.

Specifications

Size： 10 x 38 mm
Rated Voltage： 1000V DC
Application Photovoltaic (Solar Panel) systems
Customization Factory-customized solutions available
Function Re-settable, overcurrent protection

Item	DC Fuse with fuse holder
Model Number	JF10PV
Pole	1P
Rated Current(In)	1,2,3,4,5,6,8,10,12,15,20,25,32
Biggest Block Ability(KA)	20
The Most High Power Consumption(W)	3.5
Connection(mm2)	2 .5 -1 0
Working Temperature(℃ )	-30~+70
Resistance And Damp Hot	Class 2
Altitude(m)	≤ 2000
Relative Humidity	≤ 95%
Protection Class/Degree	IP20
Pollution	3
Installation Class/Type	Class III/DIN rail
Fuse Size	10×38
