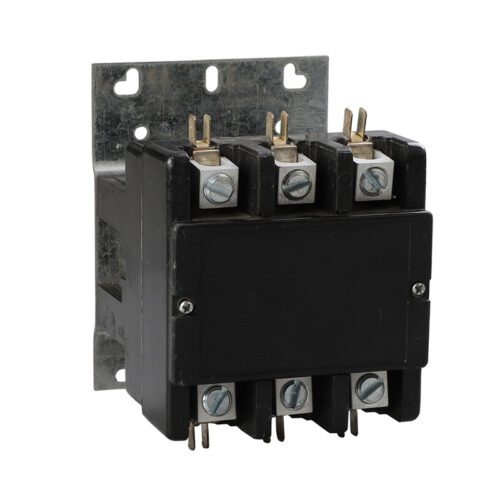

Air conditioning contactor - Air Conditioning AC Contatcor

Air conditioning contactor

Air conditioning contactors are definite purpose AC contactor are designed for use in refrigeration, air conditioning, and electric heating systems.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Specifications

CJX9 Series Air Conditioning AC Contactor is mainly applicable to AC 50Hz or 60Hz, rated insulation voltage 240V and rated working current up to 60A, used to close or switch off the line .

Power connections can be made with either screw terminals with quick connects or lug terminals with quick connects Its comply with IEC60947-4-1 .

Full Load Amps (FLA)	Resistive Amps @600 VAC(A)	Locked Rotor Amps 240/277 VAC (A)	Locked Rotor Amps 480VAC (A)	Locked Rotor Amps 600VAC (A)	Maximum Horsepower (HP)
Full Load Amps (FLA)	Resistive Amps @600 VAC(A)	Locked Rotor Amps 240/277 VAC (A)	Locked Rotor Amps 480VAC (A)	Locked Rotor Amps 600VAC (A)	Voltage	Single Phase	Three Phase
1 Pole Contactors
20	30	120	100	80	120	1	–
25	35	125	125	100	140	2	–
30	40	125	125	100	120	1	–
30	40	125	125	100	240	2	–
40	50	160	160	120	120	2	–
40	50	160	160	120	240	3	–
2 Pole Contactors
20	30	100	100	80	120	2	–
20	30	100	100	80	240	3	–
25	35	125	125	100	120	2	–
25	35	125	125	100	240	3	–
30	40	125	125	100	120	2	–
30	40	125	125	100	240	3	–
40	50	160	160	120	120	2	–
40	50	160	160	120	240	3	–
3Pole Contactors
50	65	300	250	200	110/220	3	15
					200/208	7.5	15
					220-240	10	–
					480	–	25
					600	–	25
60	75	360	300	240	110/220	5	25
					200/208	10	25
					220-240	15	–
					480	–	30
					600	–	30
75	90	450	375	300	110/220	5	20
					200/208	10	25
					220-240	15	25
					480	–	40
					600	–	40
90	120	540	450	360	110/220	7.5	25
					200/208	15	25
					220-240	20	30
					480	–	50
					600	–	50
