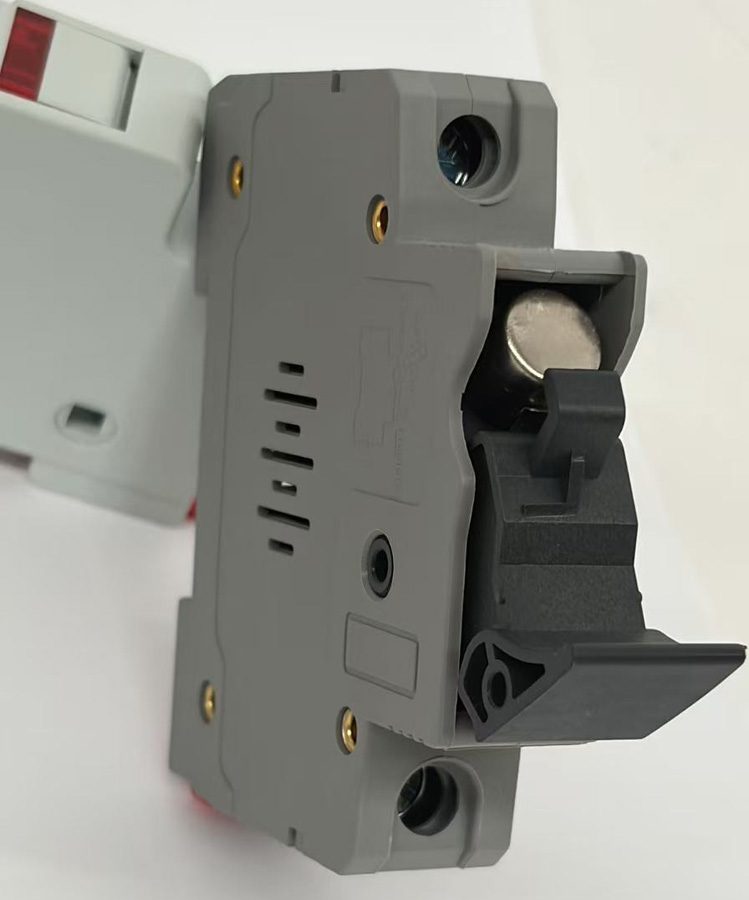

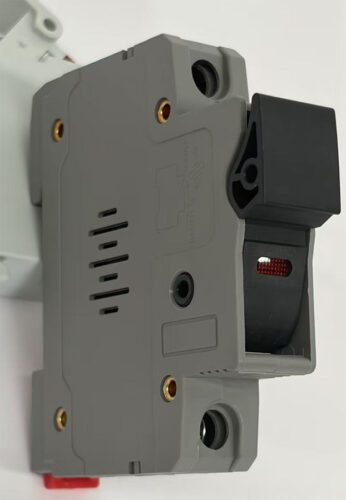

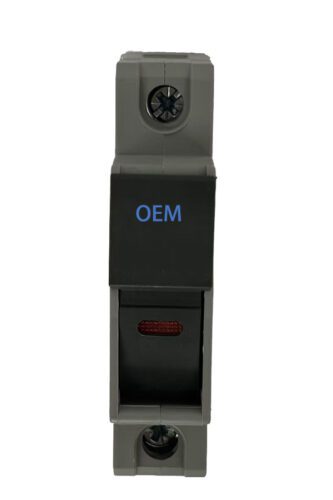

JFPV-32 1000VDC 10X38mm Solar PV Fuse Base / Fuse Holder

Place of Origin:Zhejiang, China (Mainland)

Model type:

JFPV-32 Fuse Base/holder

Fuse Size :10×38

Poles Number:1,2,3,4

rated current: up to 32A

rated voltage:1000 DC

accord with standards:CE

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Description

JFPV-32 1000VDC 10X38 Solar PV Fuse Holder is specifically designed to protect photovoltaic systems under extreme environmental temperature conditions. The rated voltage of this series of fuses can reach 1000VDC, the rated current can reach 32A, and the rated breaking capacity can reach 20KA. The 1000VDC Solar PV Fuse Holder complies with IEC standards.it can prevent overload and short-circuit currents generated by photovoltaic systems.

JFPV-32 1000VDC 10X38mm Solar PV Fuse Holder is specially provide fast protection under overload current situation. 1000VDC Solar PV Fuse Holder photovoltaic DIN rail fuse holder adopts VO standard flame retardant shell and enclosed design.
