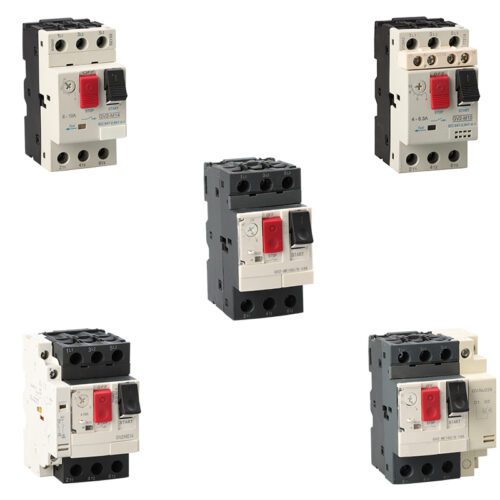

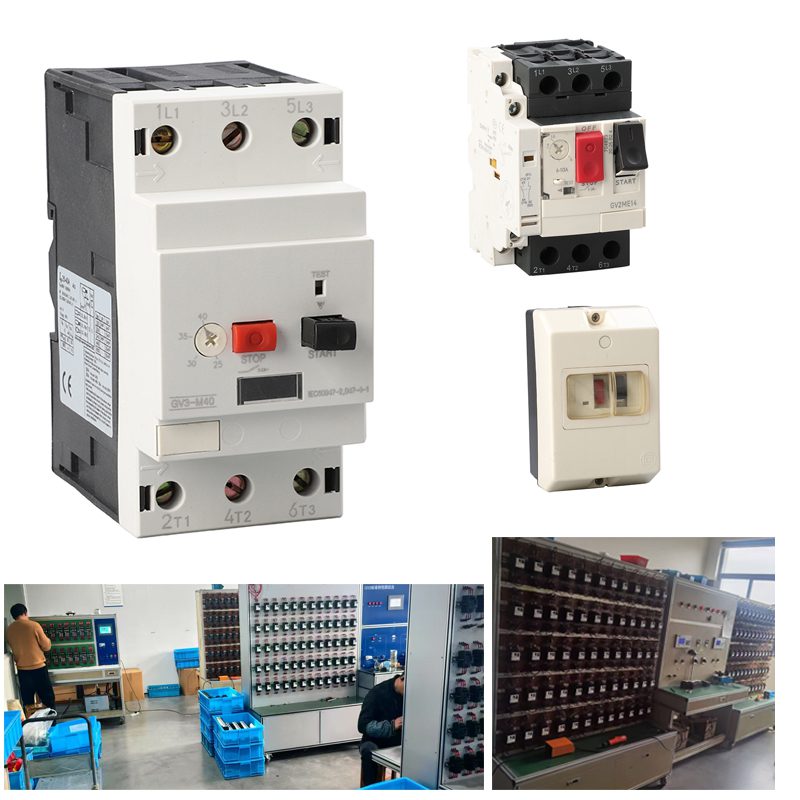

GV3M Motor Protector Circuit Breaker
Place of Origin:Zhejiang, China (Mainland)
Model type:
GV3M06 ; GV3M07 ; GV3M08 ; GV3M10 ; GV3M14
GV3M20 ; GV3M25; GV3M40 ; GV3M63 ; GV3M80
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
GV3M seris Motor protection circuit breaker (Motor Manual Starter) are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V From 1-80A power circuit.
As a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.
| Type | Rated standard power of 3-phase motors 50/60HZ in category AC-3 | Setting range(A) | |||||
| 220V | 380V | 415V | 440V | 500V | 660V | ||
| KW | KW | KW | KW | KW | KW | ||
| GV2-M01 | — | — | — | — | — | — | 0.1-0.16 |
| GV2-M02 | — | — | — | — | — | — | 0.16-0.25 |
| GV2-M03 | — | — | — | — | — | — | 0.25-0.4 |
| GV2-M04 | — | — | — | — | — | 0.37 | 0.4-0.63 |
| GV2-M05 | — | — | — | 0.37 | 0.37 | 0.55 | 0.63-1.0 |
| GV2-M06 | — | 0.37 | — | 0.55 | 0.75 | 1.1 | 1.0-1.6 |
| GV2-M07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV2-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4.0 |
| GV2-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
| GV2-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6.0-10.0 |
| GV2-M16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9.0-14.0 |
| GV2-M20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13.0-18.0 |
| GV2-M21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17.0-23.0 |
| GV2-M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20.0-25.0 |
| GV2-M32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24.0-32.0 |
| GV3-M06 | — | 0.37 | — | 0.55 | 0.75 | 1.1 | 1.0-1.6 |
| GV3-M07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV3-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4.0 |
| GV3-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4.0-6.0 |
| GV3-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6.0-10.0 |
| GV3-M20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10.0-16.0 |
| GV3-M25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16.0-25.0 |
| GV3-M40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25.0-40.0 |
| GV3-M63 | 15 | 30 | 33 | 33 | 40 | 55 | 40.0-63.0 |
| GV3-M80 | 22 | 40 | 45 | 45 | 55 | 63 | 56.0-80.0 |
